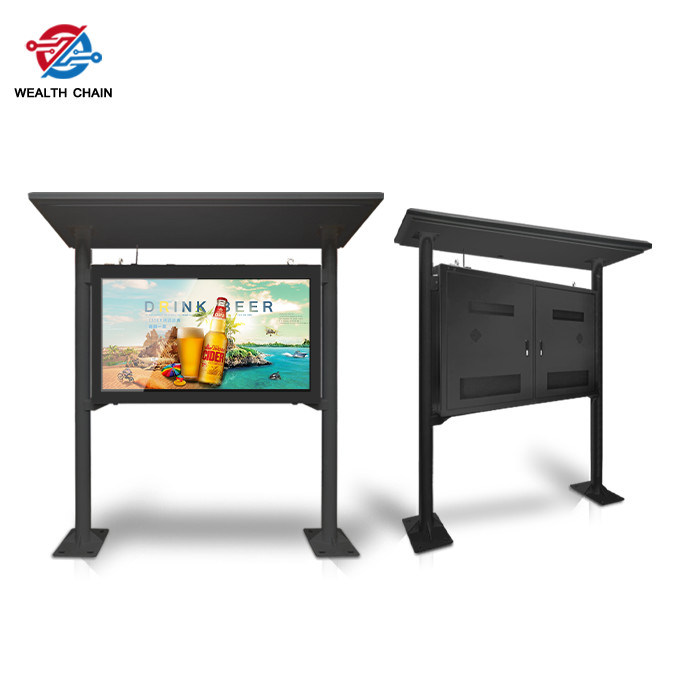

Pillar Stand Outdoor LCD Digital Signage Display Size 64.95" X 36.53" For All Weather

Pillar Stand Outdoor LCD Digital Signage Display Size 64.95" X 36.53" For All Weather

  • High Light

    Pillar Stand Outdoor LCD Digital Signage

    ,

    All Weather Outdoor LCD Digital Signage

    ,

    4000 Nits Outdoor LCD Digital Signage

  • Display Size
    43 -100 Inch Available
  • Resolution
    1920*1080P Or 4K
  • Orientation
    Landscape 9:16
  • Brightness
    2000 Nits- 4000 Nits
  • Operation System
    Android 2GB RAM + 16GB SSD
  • Remote Control
    By Cloud Based CMS
  • Input Voltage
    AC100-240V (+/-10%),50/60Hz
  • Warranty
    1 Year
  • Place of Origin
    Guangzhou, China
  • Brand Name
    WD
  • Certification
    CE, ROHS, FCC
  • Model Number
    WDOF-N2C
  • Minimum Order Quantity
    1 unit
  • Price
    USD 1,100.00 - 15,000.00 /pc
  • Packaging Details
    One unit per strong carton + Wooden case
  • Delivery Time
    7-25days
  • Payment Terms
    T/T, L/C, Paypal
  • Supply Ability
    1000 pcs per month

Pillar Stand Outdoor LCD Digital Signage Display Size 64.95" X 36.53" For All Weather



Display size 64.95"(W) x 36.53"(H) pillar stand For outdoor all weathers use



A web-based information management system that makes creating, publishing and managing presentations simple and reliable. The LCD display is durable and energy efficient. . By adding a laptop or desktop, you can control your content from anywhere using an RJ45 (Ethernet) cable or via WIFI.



· Native Resolution 3840 x 2160

· Backlight LED

· Brightness 2500 nit

· Contrast Ratio 5000:1

· Response Time 5 ms (typ)

· Viewing Angle 178°/178°

· Humidity 10% ~ 80% RH Non-condensing

· Light Life Time 50,000 hrs (typ)

· Blackening Defect Free Up to 230°F

· Storage Temperature -40°F - 140°F

· Operating Temperature -40°F - 122°F

· Power Supply Internal

· Rated Voltage 100v ~ 240v, 50Hz/60Hz





Pillar Stand Outdoor LCD Digital Signage Display Size 64.95" X 36.53" For All Weather 0



SPECIFICATION



Mainboard parameters

CPU

 RK3288(standard) A40/3188/3399(optional)

System

Android (with CMS)

RAM

2G (4G optional)

Memory

16G (32G -128G optional)

Interface

USB / RG45 / HDMI / RS232 /TF / 4G module

WIFI

Yes

LCD screen

Panel

TFT-LCD, LED backlight ,Non Touch

Display ratio

16:9

Max resolution

1920x1080px, 3840x2160px

Brightness

1500 - 3000 nits

Contrast ratio

5000:1

Response time

5ms

Dot pitch

0.53(H)X0.53(V)mm

Colour

16.7M

Viewing angle

178°(H)/178°(V)

Operating environment

Temperature

-30℃ to 50℃

Humidity

10~90%RH

Input voltage

AC100-240V~(+/-10%),50/60Hz

Enclosure

Protection grade

IP55 / IP65

Color

Black/Red/White/Gray/Customized

Housing material

Sheet metal +tempered glass +Aluminum frame

Playing format

Video format

MPG, MPG-1, MPG-2, MPG-4, AVI, MP4, TS, MKV,

Image Format

GIF, JPEG, PNG, BMP





Pillar Stand Outdoor LCD Digital Signage Display Size 64.95" X 36.53" For All Weather 1



APPLICATION

  Bus Stations , Airports, Gardens , Resorts , Schools , Shopping Malls , Retail Parks ,Theme Parks , Zoos etc.
